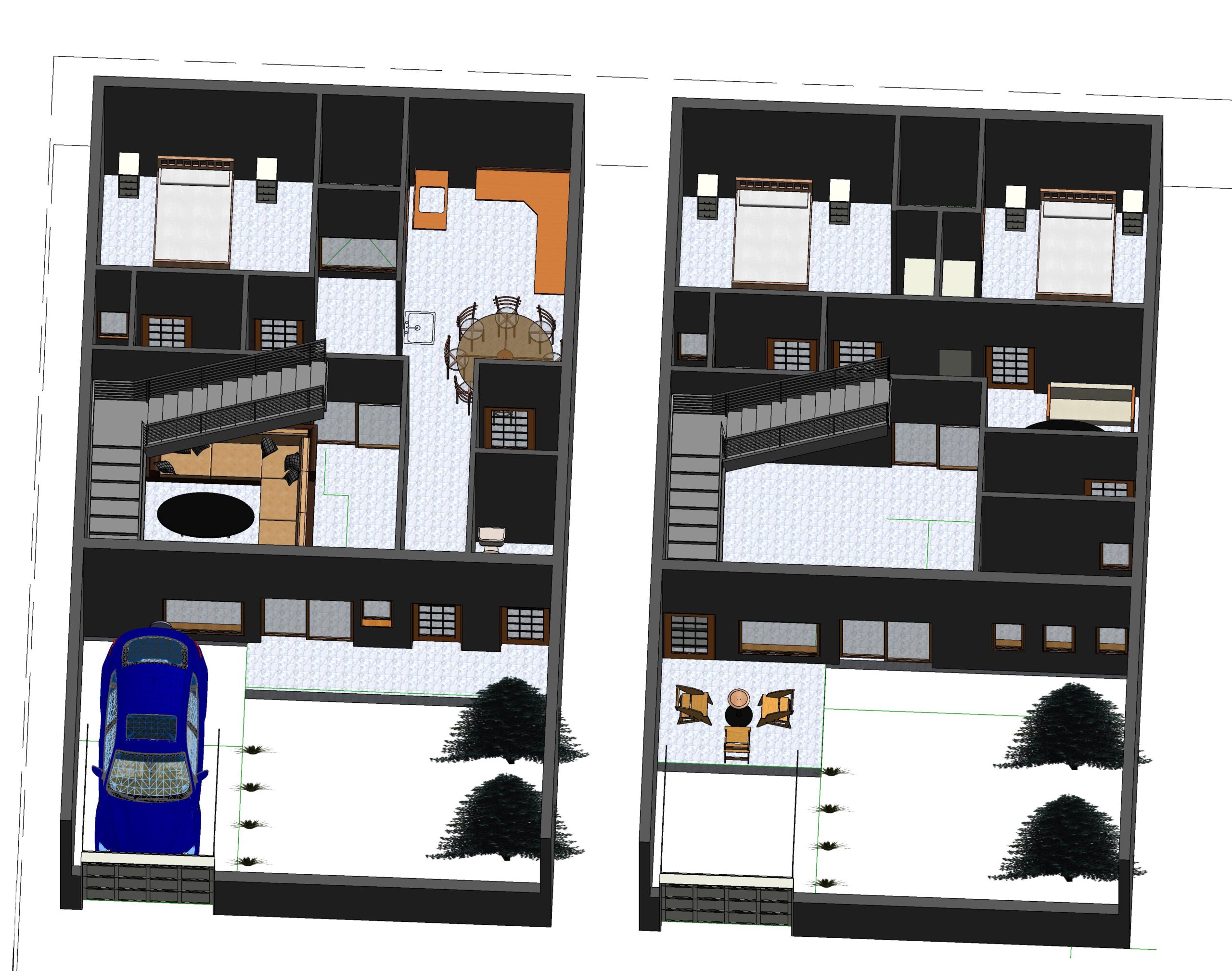

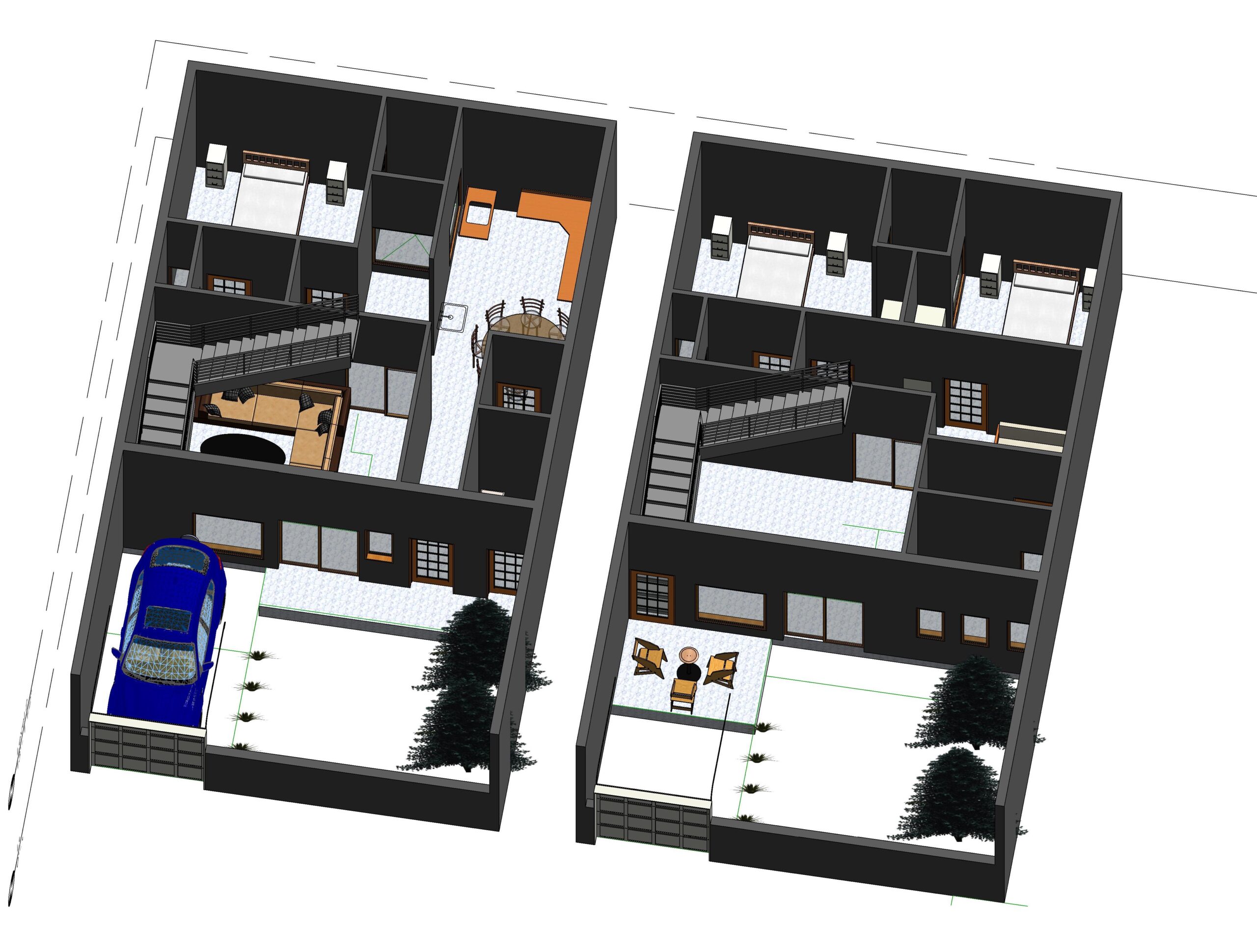

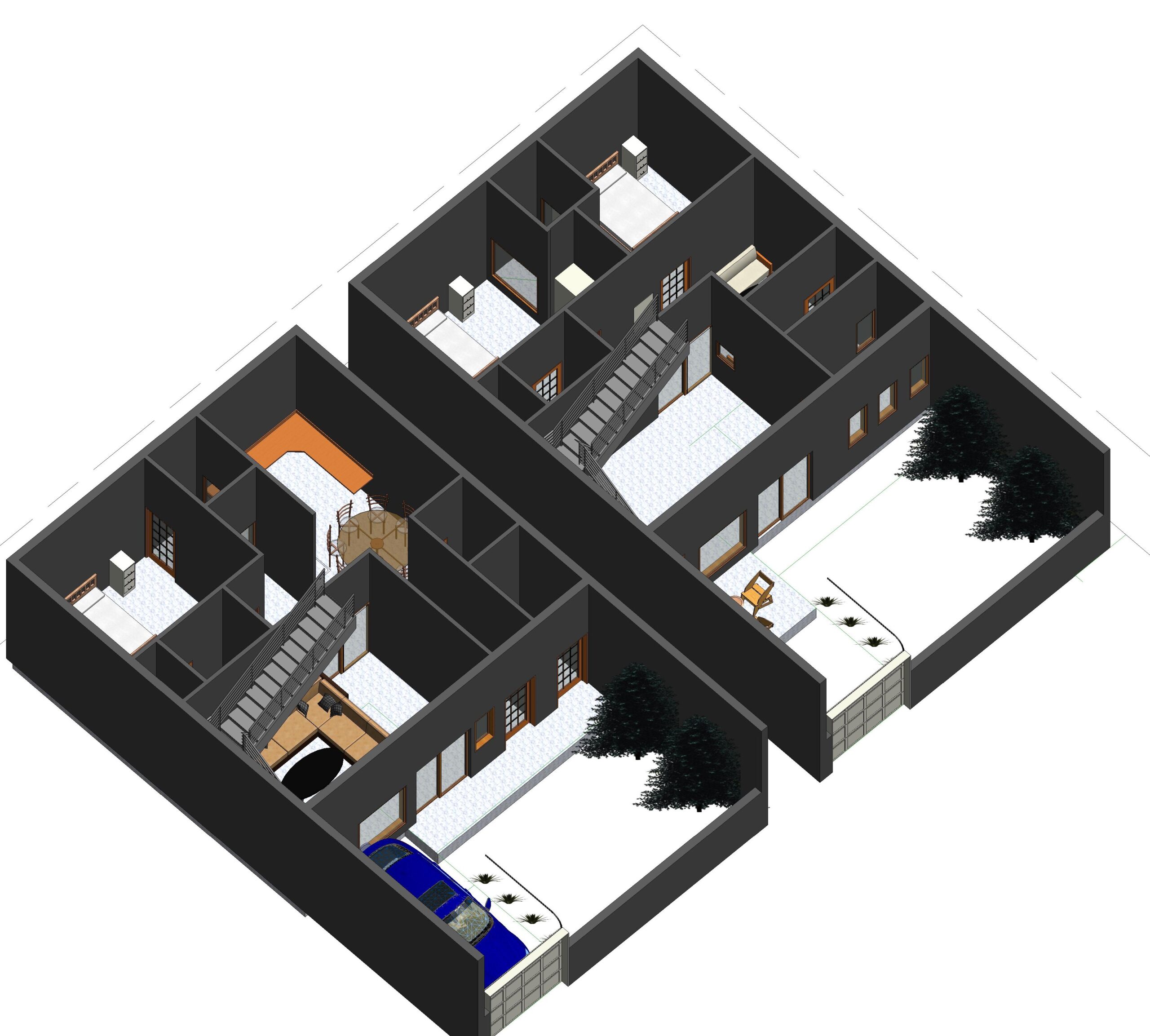

🏠 Project Overview

Client: Mr. Anwar Mota
Plot Size: Not specified clearly in this image, but the built-up area is ~1800 sq ft
Scale: 3/16” = 1’-0”
Site: Moti Nagar, Bareilly, UP
Designer: House Plan Files (www.previous.houseplanfiles.com)

Bedroom (Rear):
- Size: 10′ x 13′
- Attached toilet (W.C.): 4′ x 6′
- Well-ventilated with nearby windows.
Kitchen & Store Room:
- Kitchen: 8′ x 7′
- Positioned beside the dining area
- Store: 3′ x 5′
Dining Area:
- Size: 10′ x 10′
- Centrally located with access to pooja room and stairs.
Pooja Room:
- Size: 3′ x 5′
- Tucked between the kitchen and bedroom.
Living / Drawing Room:
- Size: 12′ x 10′
- Just inside the main entrance, connected to the dining area.
Toilet (Common):
- Near the staircase
- Size: 4′ x 6′
Car Parking:
- Covered parking in front (approx. 9′ x 15′)
Garden:
- Spacious area in front and one side, ideal for landscaping.

Bedroom 1 (Front Right):
- Size: 12′ x 11′
- Attached toilet (W.C.): 4′ x 6′
Bedroom 2 (Back):
- Size: 12′ x 11′
- With access to common W.C. (4′ x 6′)
Lobby/Passage:
- Connects all rooms and staircase.
Lounge / Sitting Area:
- Size: 10′ x 10′
- Overlooks the garden area via large windows.
Drawing Room (Above car park):
- Size: 12′ x 10′
- Spacious and well lit.
Wash Area / WC (Common):
- Positioned near the drawing room
- WC: 4′ x 6′
- Wash: 4′ x 3′
Balcony/Garden View Terrace:
- Overlooking the garden, accessible from the drawing room and sitting area.

Garden View: Beautiful landscaping opportunities with a garden in front.
Separate Floors: Bedrooms and lounge on upper floor allow quiet, private areas.
Good Circulation: Easy flow from entrance → drawing → dining → bedrooms.
Compact & Smart: Efficient room sizing for maximum utility.

DISCLAIMER –:

This pdf file is just an idea for planning your home design , don’t use these designs
without consultation of aprofessional architect or civil engineer.
This house plan is just for an idea of home design planning, our advice , oppoint a site engineer or supervisor before starting construction on this plan.
House plans is designed as per client requirments ,we are not claimed that all the plans are according to vastu.
consultation of a professional architect or civil engineer.
These designs are a kind of digital product,these are non refundable & replaceable.
These designs can not be use for building permission from local authority.
These designs can not be used for reselling
